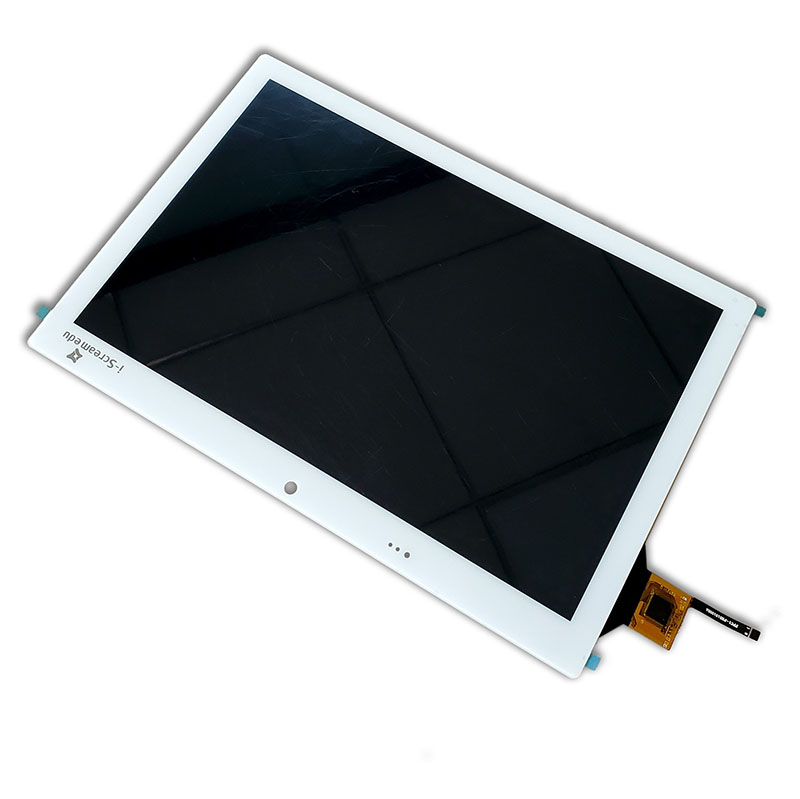

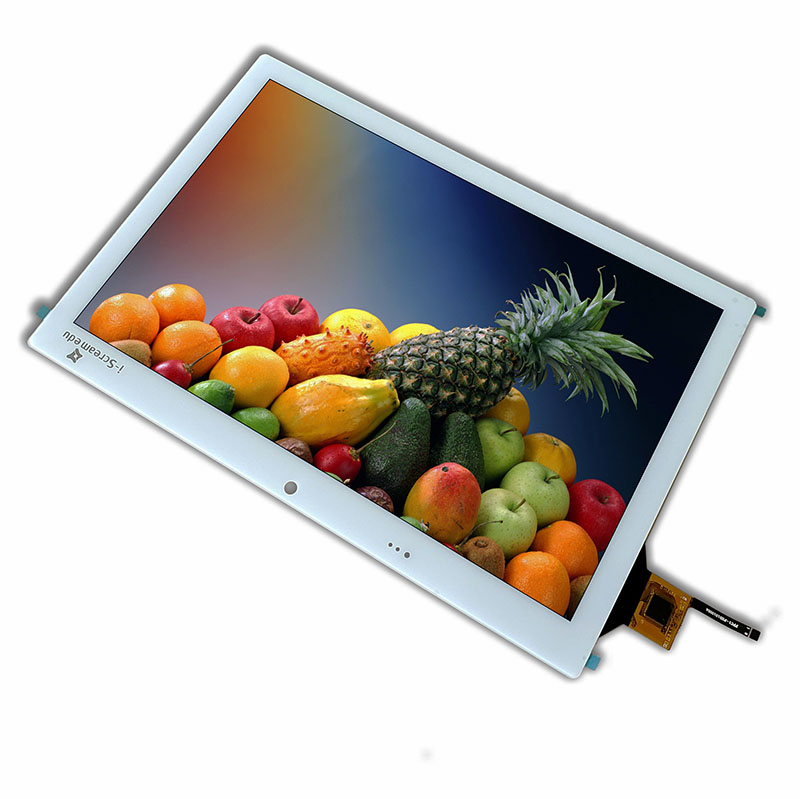

10.1寸TFT液晶电磁屏总成

产品型号：FRD101A40047-B-CTQ.pdf规格书下载

10.1寸TFT液晶电磁屏总成。能够实现精准触控和原笔迹书写的电磁式触控屏，需要配合电磁笔才能实现触控。产品型号：FRD101A40047-B-CTQ.pdf
No Item Specification Remark
1 Screen Size 10.1inch
2 Display Mode Normally Black
3 Resolution 1200 × RGB × 1920
4 Active Area 135.36*216.58 mm
5 Outline Dimension 163.7*239.4*3.575 mm
6 Viewing Direction ALL
7 Driver IC HX8279-D01QPD-200-P
8 Interface MIPI
9 Back Light White Led*28
10 Touch Panel With CTP
